Vehicle Loading

Vehicle Labeling

It is important to understand your vehicle's original tire sizes and pressures, and theTPMLM (Technically Permissible Maximum Label Mass) and TPMAM (Technically Permissible Maximum Mass on Axle). This information can be found on two labels attached to Model S.

On vehicles manufactured before July 2017, both labels are located on the right side door pillar and can be seen when the front passenger door is open.

Two labels on center door pillar indicating how much weight the vehicle can carry

On vehicles manufactured as of July 2017, the Product Plate label is located on the right side door pillar and can be seen when the front passenger door is open. The Tire Information Label is located on the left side door pillar (as shown below), and can be seen when the driver's door is open.

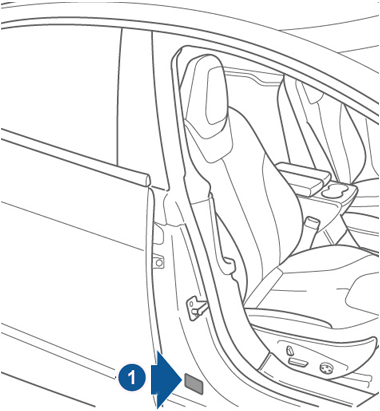

Product Plate Label visible on center pillar visible when the front passenger door is open

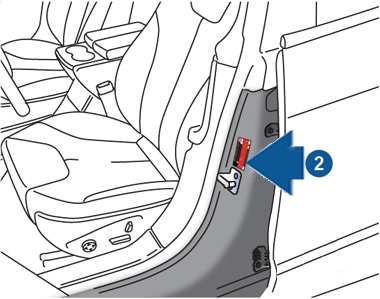

Tire and Loading Information Label visible on center pillar visible when the driver door is open
  1. Tire Information Label
  2. Product Plate
Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Overloading Model S has an adverse effect on braking and handling, which can compromise your safety or cause damage.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Never store large amounts of liquid in Model S. A significant spill can cause electrical components to malfunction.

Tire Information label

The Tire Information label provides:

  • The maximum number of occupant seating positions.
  • The size of the original tires.
  • The cold inflation pressures for the original front and rear tires. These pressures are recommended to optimize ride and handling characteristics.
An example of a Tire Information label

Never change this label, even if you use different tires in the future.

Informational PurposesAn informational icon, calling your attention
Note
If Model S is loaded to its full capacity, double check all tires to ensure they are inflated to their recommended pressure levels.

Product Plate

The Product Plate provides the Maximum Allowable Total Mass. This is calculated as the weight of Model S, all passengers, fluids, and cargo.

Cars built in the United States:

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
To prevent damage, never load Model S so that it exceeds the Maximum Allowable Total Mass.

Towing a Trailer

Warning IconA warning icon, calling your attention to a possibly risky situation
Warning
Do not use Model S for towing purposes. Model S does not support a trailer hitch. Installing one could cause damage and increase the risk of a collision.
Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Using Model S for towing may void the warranty.

Roof Racks

A Model S equipped with a glass roof, or a panoramic sunroof, can carry up to 165 lbs (75 kg) using a Tesla-approved roof rack (see Parts and Accessories).A Model S equipped with a solid body color roof is incompatible with roof racks.

Warning IconA warning icon, calling your attention to a possibly risky situation
CAUTION
Do not use roof racks, or place any load, on the roof of a Model S that is equipped with a solid color roof. Doing so can cause significant damage.
