Subsystems

Motor Type(s)

Rear motor: AC permanent magnet synchronous motor, liquid-cooled, with variable frequency drive.

Front motor (AWD vehicles): AC induction motor, liquid-cooled, with variable frequency drive.

Performance and Energy

For information related to performance and energy, go to https://www.tesla.com/zh_tw/.

Variant Standard Range+ RWD Long Range AWD Performance
Homologation Approval Model Name Model 3 E6L A1 5D Model 3 E3D A1 5D Model 3 E3DP A1 5D
Range (km) 485 619 563

Range Labels

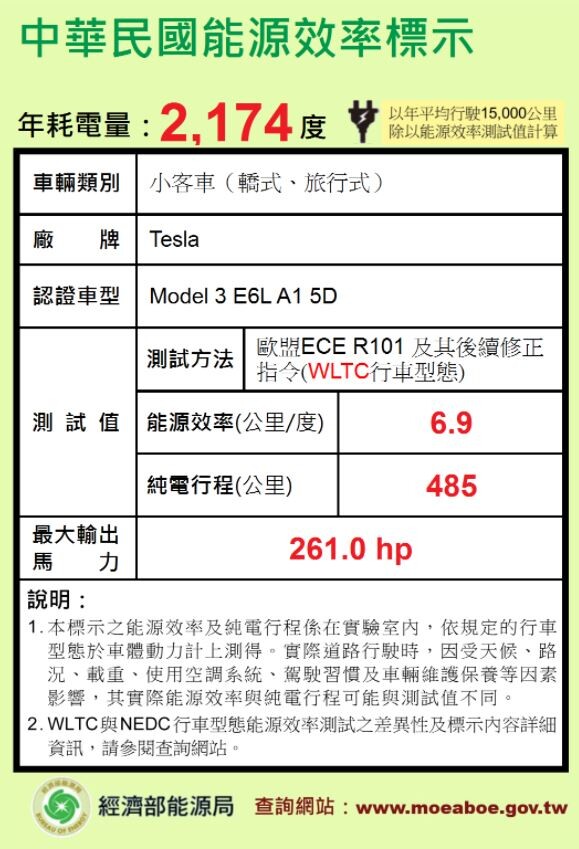

Standard Range+ RWD:
standard range + RWD range label
Long Range AWD:
long range RWD range label
Performance:
performance range label

Transmission

Transmission Specifications
Type Single speed fixed gear
Gearbox Ratio 9:1

Steering

Steering Specifications
Type Rack and pinion with electronic power steering, speed sensitive
Number of turns lock to lock 2.00
Turning Circle (curb to curb) 11.6 meters

Brakes

Brakes Specifications
Type 4-wheel anti-lock braking system (ABS) with Electronic Brake Force Distribution, Integrated Advanced Stability Control and Electronic Accelerator pedal actuated regenerative braking system
Rotor Diameter (ventilated)

Front (non-Performance): 12.6"/320 mm
Front (Performance): 13.98"/355 mm
Rear (non-Performance): 13.2"/335 mm
Rear (Performance): 13.2”/335 mm

Front Rotor thickness

New: 0.98"/25 mm
Service limit: 0.91”/23 mm

Rear Rotor thickness

New: 0.79"/20 mm
Service limit: 0.71”/18 mm

Lateral runout

0.050 mm

Chordal runout

0.040 mm

Disk thickness variation (DTV)

0.010 mm

Non-Performance Front Brake Pad Thickness (excluding back plate)

New: 0.393"/10 mm
Service limit: 0.110"/2.8 mm

Non-Performance Rear Brake Pad Thickness (excluding back plate)

New: 0.354"/9 mm
Service limit: 0.078"/2 mm

Performance Front Brake Pad Thickness (excluding back plate)

New: 0.393"/10 mm
Service limit: 0.085"/2.15 mm

Performance Rear Brake Pad Thickness (excluding back plate)

New: 0.393"/10 mm
Service limit: 0.071"/1.8 mm

Parking brake Electrically actuated parking brake integrated into rear caliper

Suspension

Suspension Specifications
Front Independent, double wishbone, coil spring/telescopic damper, sway bar
Rear Independent, multi-link, coil spring/telescopic damper

Battery - Low Voltage

Battery - Low Voltage Specifications
Rating 33 amp hour or higher
Voltage and Polarity Low voltage negative (-) ground

Battery - High Voltage

For Li-ion battery:

Battery - High Voltage Specifications
Type Liquid-cooled lithium ion (Li-ion)
Nominal Voltage

355V DC

Temperature Range Do not expose Model 3 to ambient temperatures above 60° C or below -30° C for more than 24 hours at a time.

For LFP battery: Vehicles with a lithium iron phopshate (LFP) battery have different charge limits. Refer to the information on your vehicle touchscreen (navigate to Controls > Charging) or the mobile app (touch the Charging icon) for recommended daily and trip charging limits.

You can determine whether your vehicle is equipped with an LFP battery by navigating to Controls > Software > Additional Vehicle Information. High voltage battery type only shows when your battery is LFP.

Battery - High Voltage Specifications
Type Lithium iron phosphate (LFP)
Nominal Voltage 345V DC
Temperature Range Do not expose Model 3 to ambient temperatures above 60° C or below -30° C for more than 24 hours at a time.
